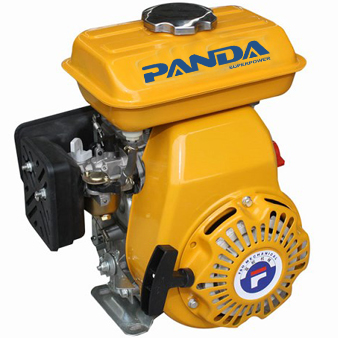

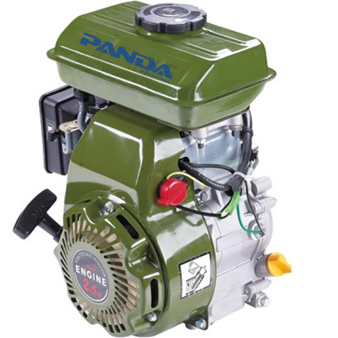

Gasoline Engine 152F
2.5HP

Small Size, Wide Application Panda Gasoline engine series has an inclination of 15°, which makes its dimension more compact than the standard vertical engine and easy for mounting on any power device.

Excellent Performance Each engine of Panda gasoline engine can deliver non-fluctuating power for a long time. It features easy starter, low noise and small vibration.

Advanced OHV: OHV type improves the output, reduces the consumption and prolongs the service lift of engines.In addition, advanced combustion chamber and automatic lubrication system guarantee the high reliability of engines.
Convenient Starting System Applying anauto-depression unit and recoil starter for a quick and easy starting.

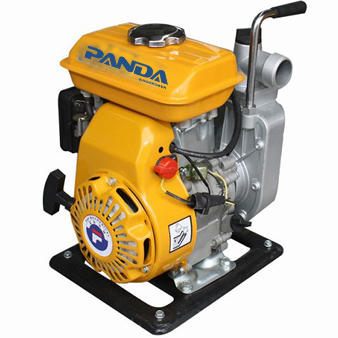

Satisfying The Needs of Customers Various PTO and speed ratios satisfy the different meets of applications, such as applications for mowers, water pumps, generators etc. Great quantities of accessories are optional.



Engine model: 152F


1.Engine Type: Single cylinder, forced air cooling, 4-stroke 0HV 25°         2.Starting system:Recoil start
3.Fuel: Gasoline
4.Compression ratio:6.8:1
5. Max Horse power:2.5HP
6.Max.output:1.8kw/3600rpm
7.Max.torque:3.2N.M/3000RPM
8.Ignition type:T.C.I
9.Fuel consumption:≤445g/kw/h
10.Fuel tank capacity:1.3L
11.Oil capacity:0.45L
12.Net weight:10kg
13.Dimensions:300x290x360
14.Qty (20GP/40GP/40HQ): 840/1722/2009pcs

12 months or 1000 operating hours from the date of purchase whichever comes first
